With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

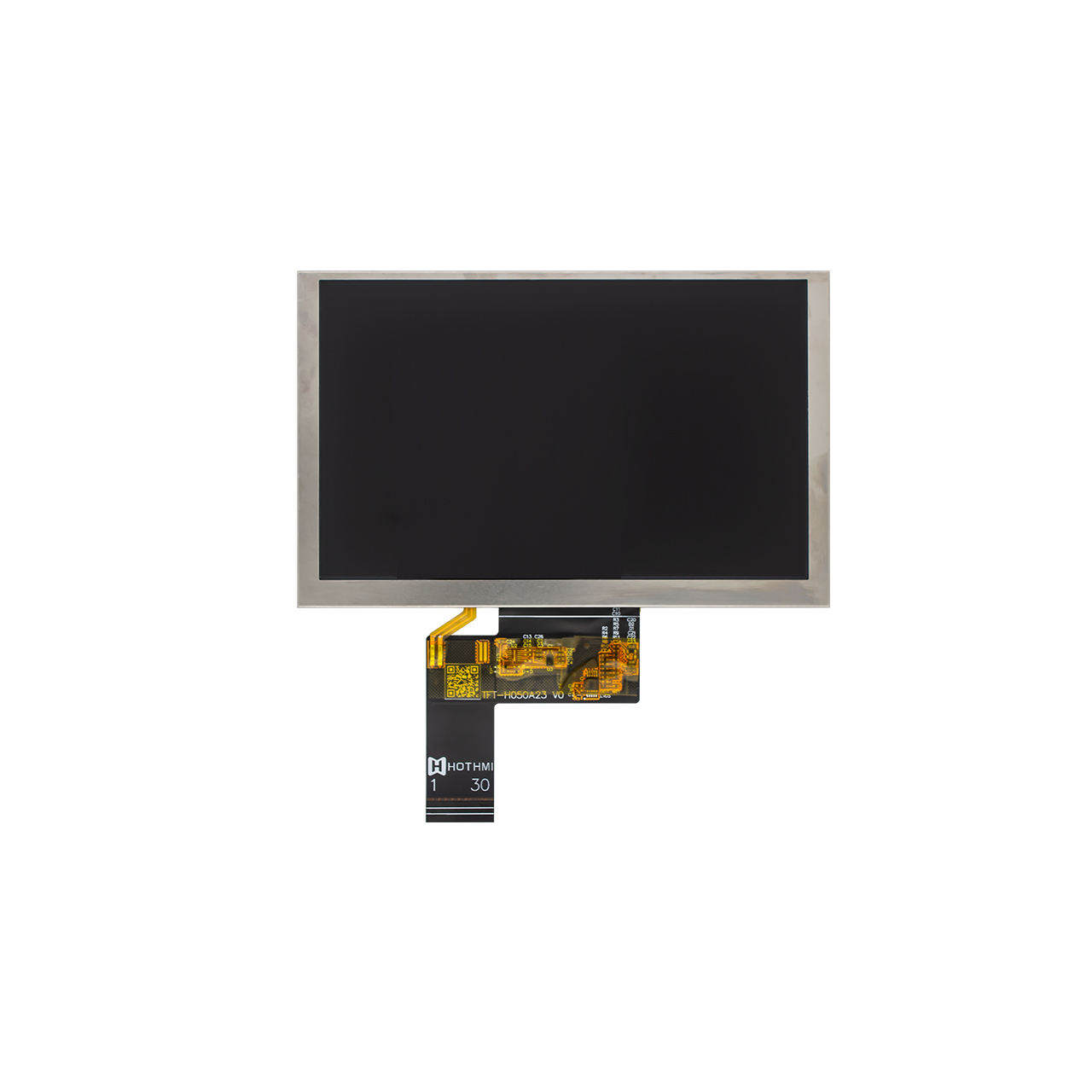

| 5 inch high brightness TFT display module supports MIPI DSI+LVDS TFT-H050A23SVIGHGN50 | TFT Display | 800x480 |
|
120x75.8x2.9 | 5.0 | 5.0 | 108x64.8 | IPS | 1500cd/m2 | 30 PIN | MIPI,LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

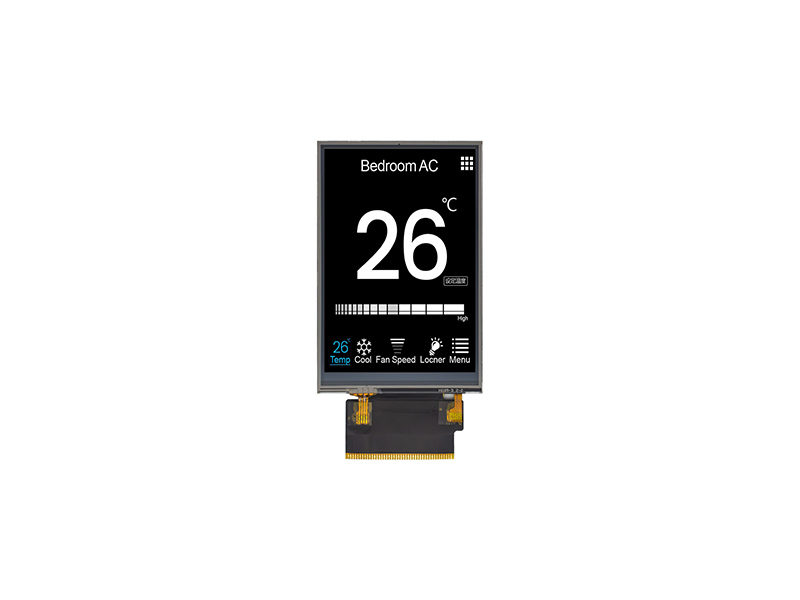

| 3.5 inch resistive touch TFT LCD screen ST7265 driver TFT-H035B36HVTIL2R44 | TFT Display | 320x480 |
|
55.9x85.36x3.9 | 3.5 | 3.5 | 48.96x73.44 | IPS | 300cd/m | 44 pin | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3V | ST7265 | |

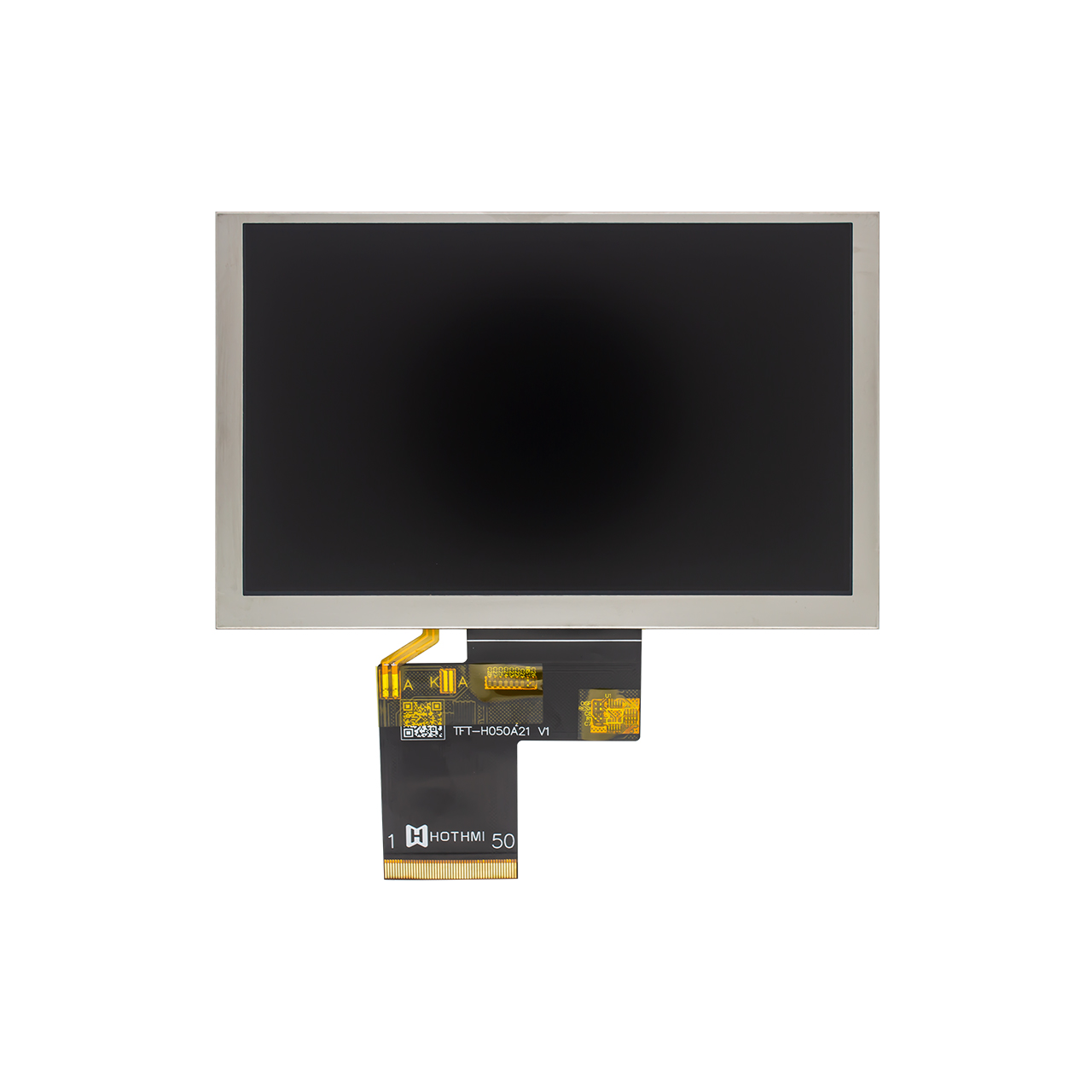

| 5 inch TFT LCD high brightness display with RGB TFT-H050A21SVISTGN50 | TFT Display | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1600cd/m2 | 50 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

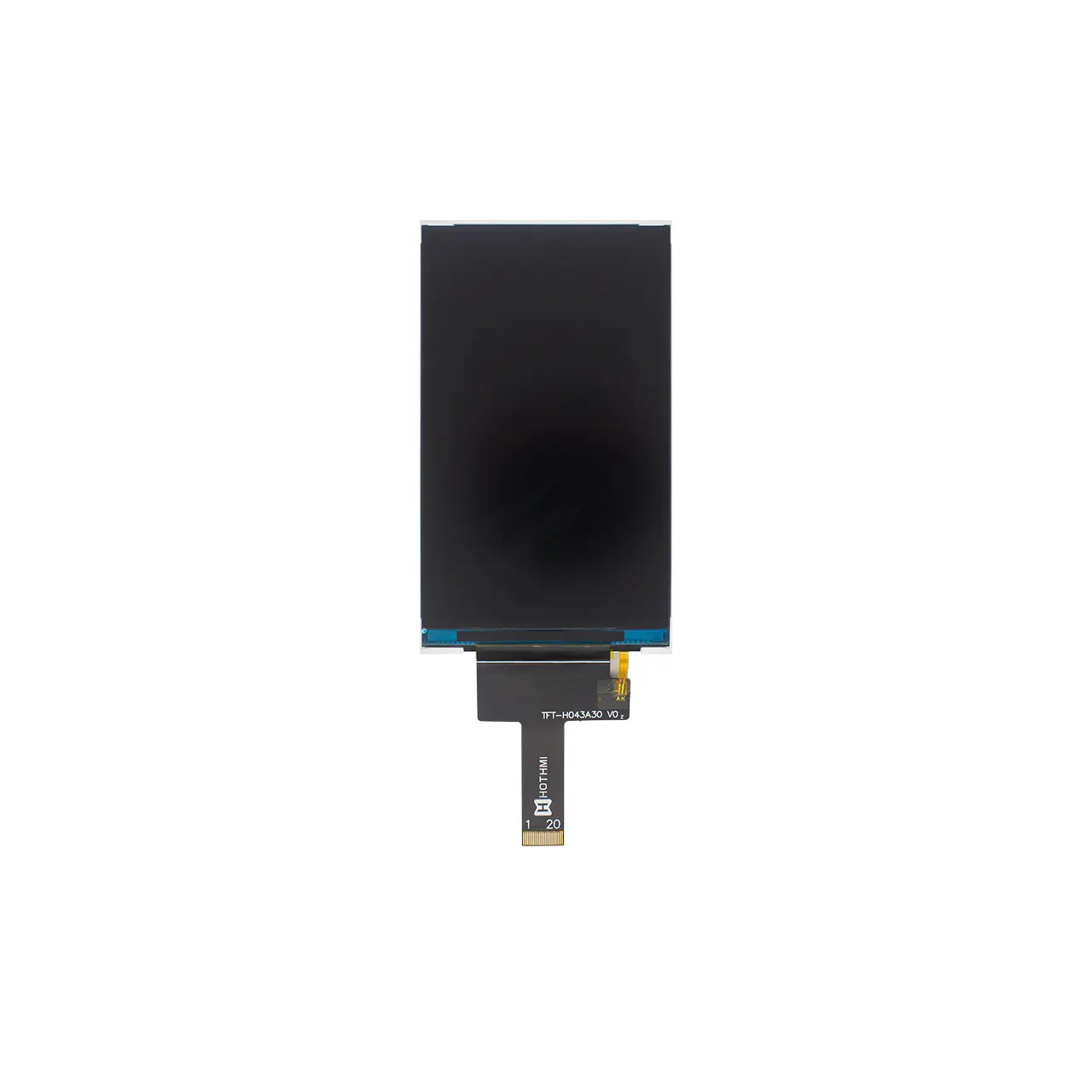

| 4.3 inch 480×800 IPS sunlight-readable ST7701S LCD screen TFT-H043A30WVIST4N20 | TFT | 480x800 |
|
60.0x104.25x2.25 | 4.3 | 4.3 | 56.16x93.60 | 56.16x93.60 | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |||

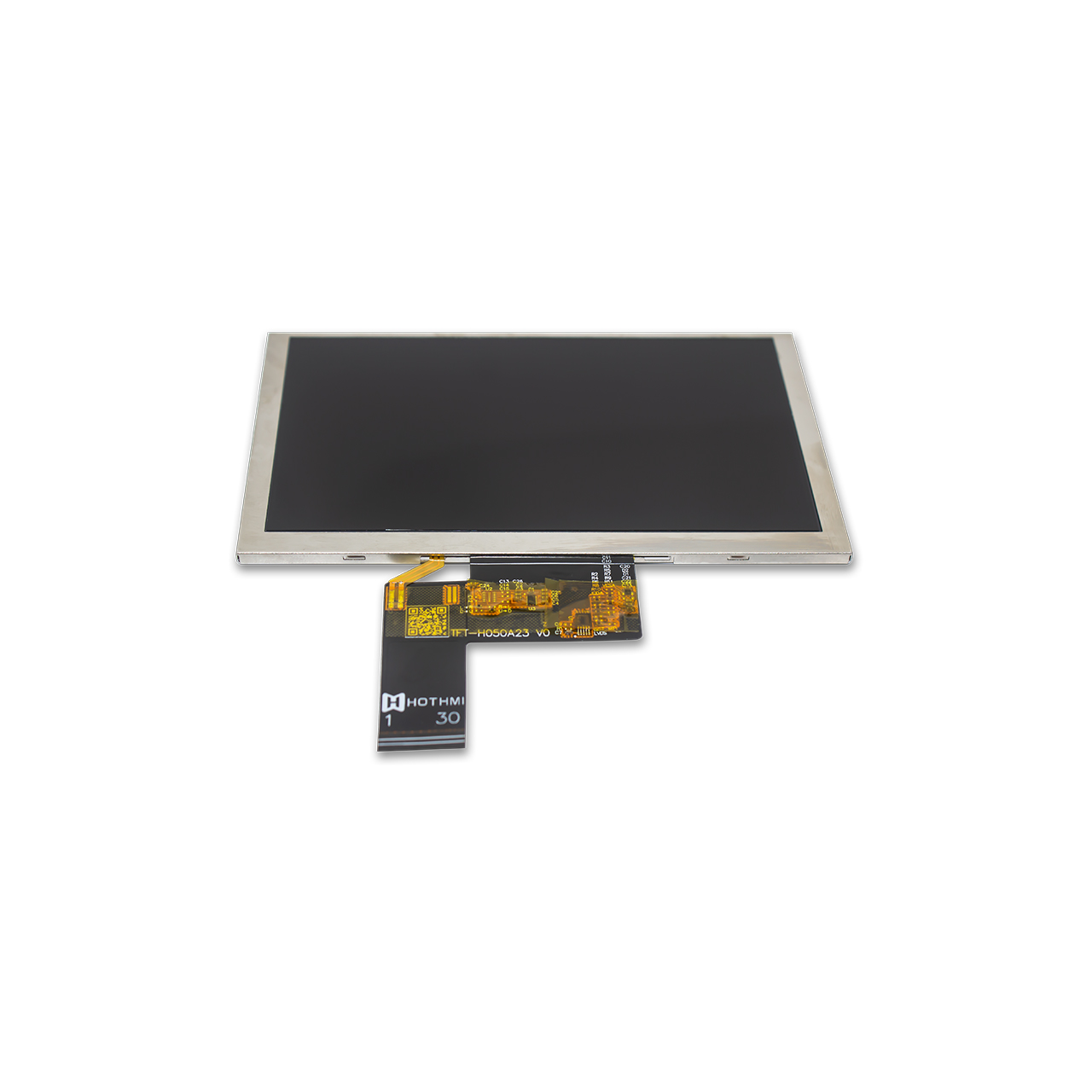

| 5.0 Inch Horizontal Display TFT Display | 800x480 Resolution High Brightness With MIPI,LVDS Interface TFT-H050A23SVIGHGN50 | TFT | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1600cd/m2 | 50 PIN | MIPI,LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

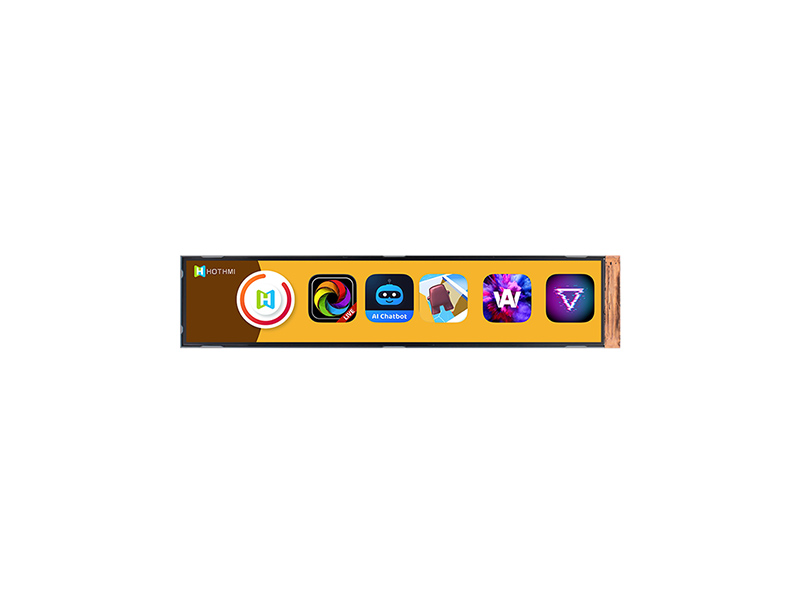

| 7 Inch 280x1424 TFT LCD Module With LVDS Interface HTM-H070A28-LVDS-A01 | TFT | 280X1424 |
|
38.2x182.47x11.5 | 7.0 | 7.0 | 33.6x170.88 | IPS | 500cd/m2 | 30 PIN | LVDS | Anti-static ESD 8KV | -20~60℃ | +3.3 V | ||

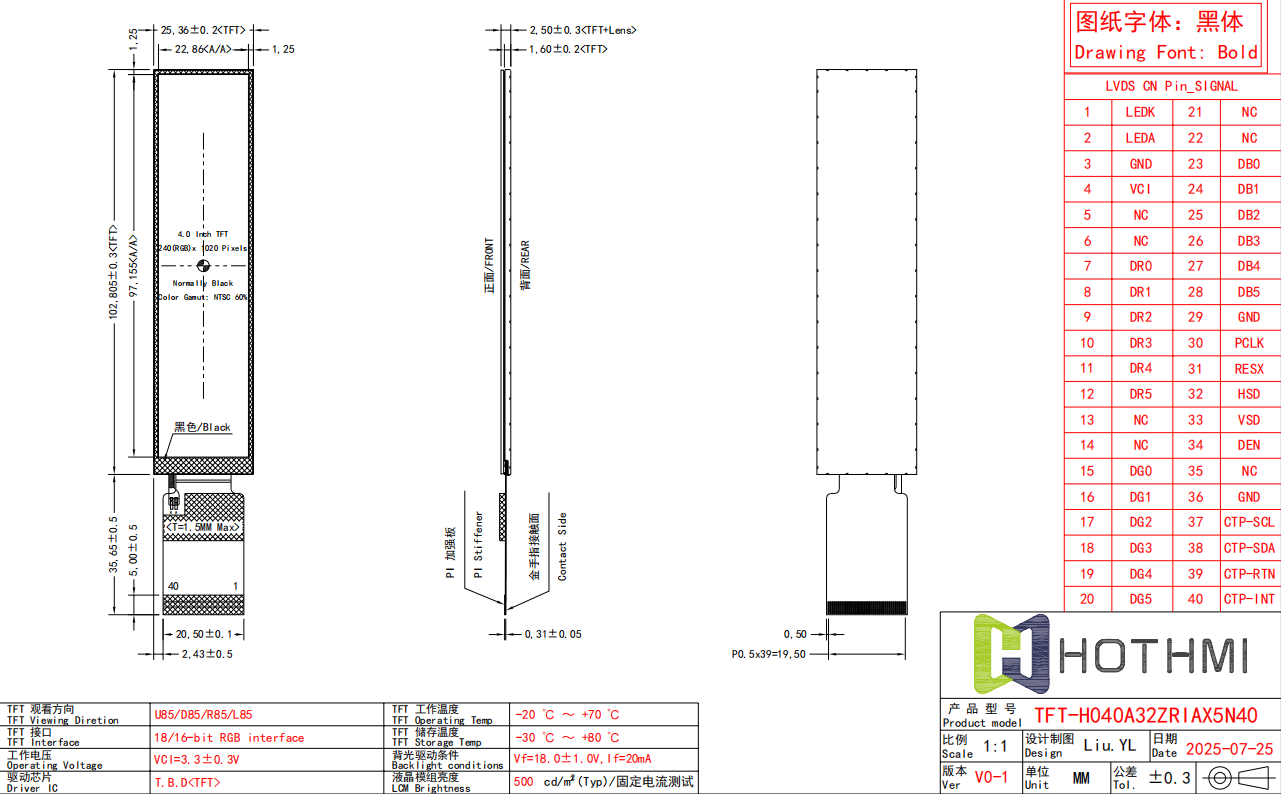

| 4.0 Inch TFT LCD | 240x1020 In-cell Touch Display With RGB Interface TFT-H040A32ZRIAX5N40 | TFT | 240x1020 |
|
25.36x102.805x2.5 | 4.0 | 4.0 | 22.86x97.155 | IPS | 500cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 800x1280 7 inch ILI9881C capacitive touchscreen PCAP LCD screen TFT-H070B13HDIIL4C40 | TFT | 800x1280 |
|
108.65x167.85x4.76 | 7.0 | 7.0 | 94.2x150.72 | IPS | 450cd/m2 | 40 PIN | MIPI | Anti-static ESD 8KV | -20~60℃ | +3.3V | ILI9881C | |
| 3 inch ST7701 capacitive touchscreen RGB TFT LCD display TFT-H030A10FWIST3C40 | TFT | 480x854 |
|
43.5x75.4x3.8 | 3.0 | 3.0 | 36.72x65.28 | IPS | 300cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701 | |
| 2.8 Inch Capacitive Touch TFT LCD Display SPI 240x320 with ST7789 Driver IC TFT-H028A16QVIST4C10 | TFT | 240x320 |
|
50.0x69.2x3.95 | 2.8 | 2.8 | 43.2x57.60 | IPS | 400cd/m2 | 10 PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789 |
